EXTRUDER E-1000 vertical


  • the model E-1000-50 vertical is specially designed for the cases when there is a lack of space in the manufacturing workshops for the extruder E-1000

  • the production of dry feed for cattle, pigs, livestock and poultry, as well as for the manufacture of extruded full-fat soy meal and sunflower meal with increased digestibility and disinfection against harmful micro-organisms and substances.



  • compactness
  • a quick temperature regulation of material processing
  • no external heating elements



soybeans, canola, pea, lupin, cereals

  • Parameter Value
  • Capacity for soybean processing, kg / hour: 1000
  • Capacity for grain and pea processing, kg / hour: 700
  • Length, mm: 1180
  • Width, mm: 2975
  • Height, mm: 2330
  • Power, kW: 92,5
  • Weight, kg: 2000

The first step is the pretreatment of raw material. It must have the proper moisture and must be cleaned from metal residues and any waste.

Raw material is fed from hopper into a screw barrel. Magnet catcher is installed within a hopper so it can catch any metal residues you’ve missed. Inside the barrel there is a screw that conveys the raw material forward to outlet die.

Extrusion is a process of thermal treatment, sterilization, dehydration, texturing and granulating of the final product.

The product goes through the barrel while the heat is progressively increased.

During thisprocess most potentiallyharmful bacteriaand viruses are killed, inhibitor trypsin level in extruded soy is reduced.

The final product is shaped by forcing out through the die.

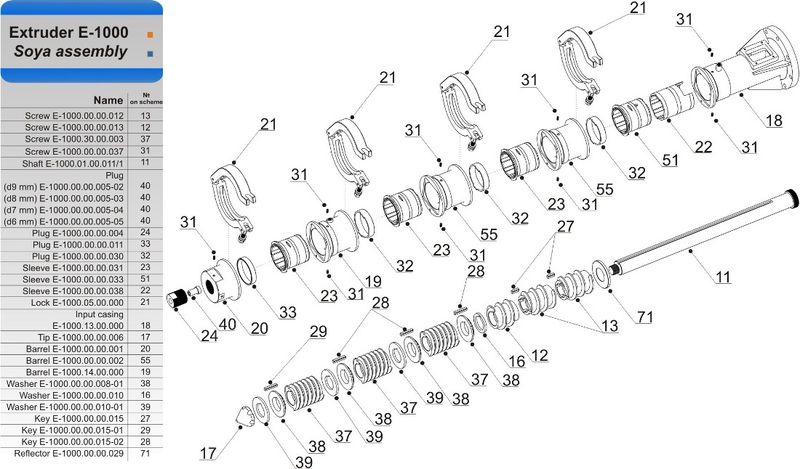

e1000 s eng

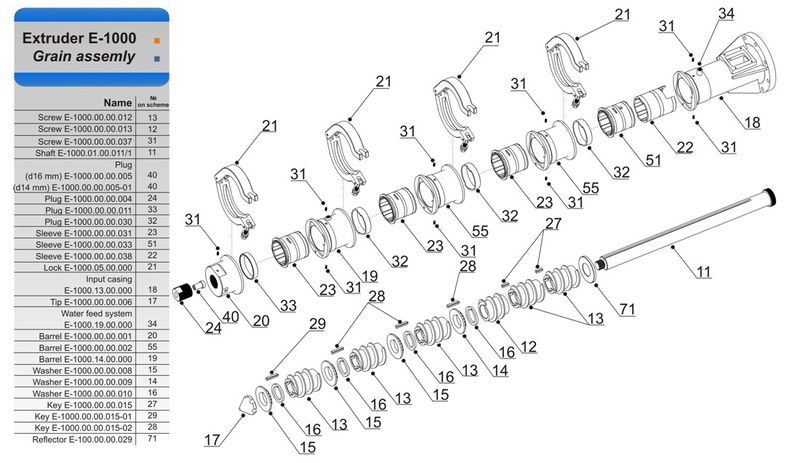

e1000 g eng
