DEHULLER MILL LSG-4

APPLICATION

  • get soybean kernels
  • get soybean hulls



ADVANTAGES

helps to increase protein content  of soy feedstock prior to processing



RAW MATERIAL

soybeans



  • Parameter Value
  • Capacity, t/h: 4
  • Moisture of raw material, %: 7-10
  • Hulls residue in the ready product,%: 1,5
  • Length, mm: 6000
  • Width, mm: 2400
  • Height, mm: 5500
  • Power, kW: 24
  • Weight, kg: 4000

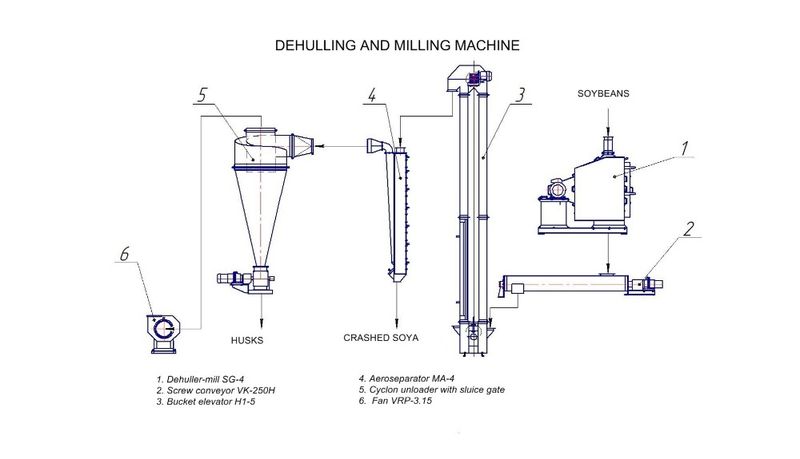

Dehulling and milling mashine eng

The dried to 8-9% soy is fed into twin roll mill.

Soybeans are compressed between the first pair of rolls. As a result shell bursts and kernel breaks up into several parts.

Soy mixture falls into the second pair of rollers. The milling process is repeated.

A high protein mixture of soy kernel and hull moves to the feeding system and air separator MA-4.

Soybean shells have a light specific weight that's why air flow moves husks up and outputs them through the cyclone.

Soybean hulls have a great amount of fiber while kernels are rich protein.

Process of dehulling increases mass fraction of soy protein.
